Standard Normal Distribution

Author(s)

David M. Lane

Prerequisites

Effects of Linear Transformations, Introduction to Normal Distributions

Learning Objectives
  1. State the mean and standard deviation of the standard normal distribution
  2. Use a Z table
  3. Use the normal calculator
  4. Transform raw data to Z scores

As discussed in the introductory section, normal distributions do not necessarily have the same means and standard deviations. A normal distribution with a mean of 0 and a standard deviation of 1 is called a standard normal distribution.

Areas of the normal distribution are often represented by tables of the standard normal distribution. A portion of a table of the standard normal distribution is shown in Table 1.

Table 1. A portion of a table of the standard normal distribution.
Z Area below
-2.5 0.0062
-2.49 0.0064
-2.48 0.0066
-2.47 0.0068
-2.46 0.0069
-2.45 0.0071
-2.44 0.0073
-2.43 0.0075
-2.42 0.0078
-2.41 0.008
-2.4 0.0082
-2.39 0.0084
-2.38 0.0087
-2.37 0.0089
-2.36 0.0091
-2.35 0.0094
-2.34 0.0096
-2.33 0.0099
-2.32 0.0102

The first column titled "Z" contains values of the standard normal distribution; the second column contains the area below Z. Since the distribution has a mean of 0 and a standard deviation of 1, the Z column is equal to the number of standard deviations below (or above) the mean. For example, a Z of -2.5 represents a value 2.5 standard deviations below the mean. The area below Z is 0.0062.

The same information can be obtained using the following Java applet. Figure 1 shows how it can be used to compute the area below a value of -2.5 on the standard normal distribution. Note that the mean is set to 0 and the standard deviation is set to 1.

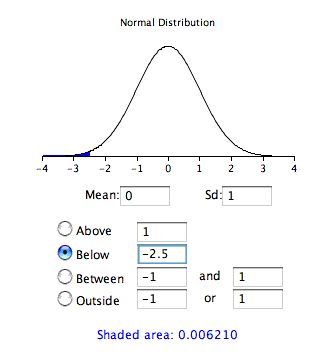

Figure 1. An example from the applet.



A value from any normal distribution can be transformed into its corresponding value on a standard normal distribution using the following formula:

Z = (X - μ)/σ

where Z is the value on the standard normal distribution, X is the value on the original distribution, μ is the mean of the original distribution, and σ is the standard deviation of the original distribution.

As a simple application, what portion of a normal distribution with a mean of 50 and a standard deviation of 10 is below 26? Applying the formula, we obtain

Z = (26 - 50)/10 = -2.4.

From Table 1, we can see that 0.0082 of the distribution is below -2.4. There is no need to transform to Z if you use the applet as shown in Figure 2.

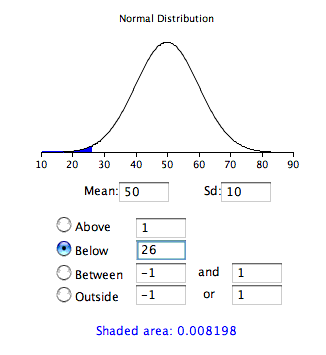

Figure 2. Area below 26 in a normal distribution with a mean of 50 and a standard deviation of 10.

If all the values in a distribution are transformed to Z scores, then the distribution will have a mean of 0 and a standard deviation of 1. This process of transforming a distribution to one with a mean of 0 and a standard deviation of 1 is called standardizing the distribution.
